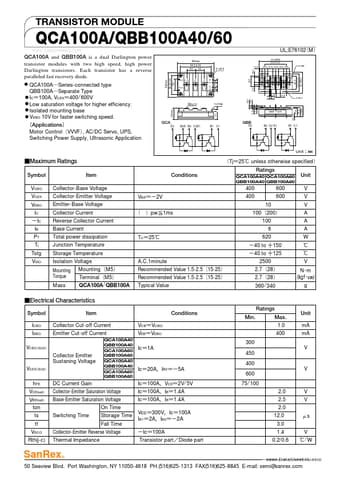

QCA100A40 (QCA100A40 / QCA100A60) TRANSISTOR MODULE

TRANSISTOR MODULE QCA100A/QBB100A40/60 www.DataSheet4U.com UL;E76102 M 95max QCA100A and QBB100A is a dual Darlington power transistor modules with two high speed, high power Darlington transistors. Each transistor has a reverse paralleled fast recovery diode. QCA100A Series-connected type QBB100A Separate Type IC 100A, VCEX 400/600V Low saturation voltage for higher efficiency. Isolated mounting base VEBO 10V for faster switching speed. Applications Motor Control VVVF , AC/DC Servo, UPS, Swi.
