QCA100AA100 Datasheet - SanRex Corporation

QCA100AA100 High power Darlington Transistors

TRANSISTOR MODULE QCA100AA100 www.DataSheet4U.com UL;E76102 M QCA100AA100 is a dual Darlington power transistor module which has seriesconnected high speed, high power Darlington transistors. Each transistor has a reverse paralleled fast recovery diode. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction, IC 100A, VCEX 1000V Low saturation voltage for higher efficiency. High DC current gain hFE Isolated mounting base Applicatio.

QCA100AA100_SanRexCorporation.pdf

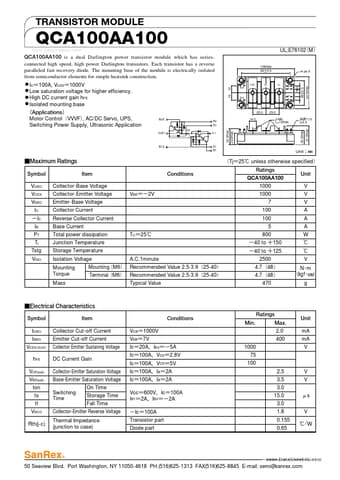

Preview of QCA100AA100 PDF
QCA100AA100 Datasheet Preview Page 2

Datasheet Details

Part number:

QCA100AA100

Manufacturer:

SanRex Corporation

File Size:

135.56 KB

Description:

High power darlington transistors.
