QCA50AA100 TRANSISTOR MODULE

QCA50AA100 Description

TRANSISTOR MODULE QCA50AA100 UL;E76102 M QCA50AA100 is a dual Darlington power transistor module which has series- connected high speed, high power D.

QCA50AA100 Applications

* Motor Control VVVF , AC/DC Servo, UPS, Switching Power Supply, Ultrasonic Application Unit A Maximum Ratings Symbol VCBO VCEX VEBO IC IC IB PT Tj Tstg VISO Item Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Reverse Collector Current Base Current Total powe

📥 Download Datasheet

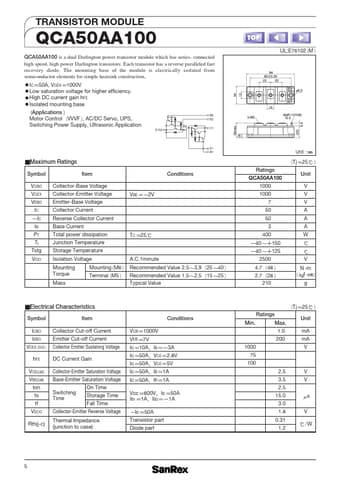

Preview of QCA50AA100 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
QCA50AA100
Manufacturer
ETC
File Size
796.37 KB
Datasheet
QCA50AA100_ETC.pdf
Description
TRANSISTOR MODULE
