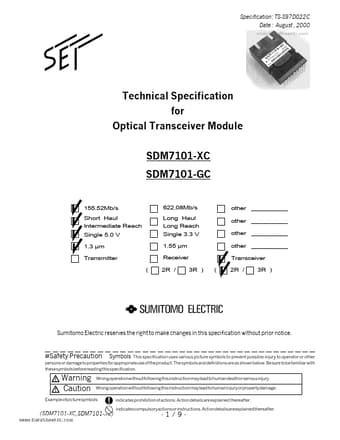

SDM7101-GC - Technical Specification for Optical Transceiver Module

Datasheet Details

Part number	SDM7101-GC
Manufacturer	ETC
File Size	209.83 KB
Description	Technical Specification for Optical Transceiver Module
Datasheet	SDM7101-GC_ETC.pdf

Low Power Consumption Low Profile (9.8mm Max) Plastic Molded Package Multi-sourcedFootprint Transmitter Uncooled Laser with Automatic Power Control IC Class 1 Laser Product (IEC 825-1 and FDA 21 CFR 1040.10 and 1040.11) Receiver Wide Dynamic Range Signal Detect (FLAG) Function 2. Block Diagram Monitor Pin PD LD Automatic Power Control Modulation Current Control TD TDb LD Driver Bias Current Control Current Source Figure 1-1. Block Diagram(Transmitter ) Front-End Amplifier Peak Hold Circuit.
