SGL-0163

800-1000 MHZ LOW NOISE AMPLIFIER 50 OHM SILICON GERMANIUM

SGL-0163 Features

* • Low Noise Figure • High Input Intercept • Internal Temp. Compensation Circuit • Internally Matched to 50 W • Unconditionally Stable • Low Power Consumption • Single Voltage Supply • Small Package: SOT-363 Applications • Receivers • Cellular, Fixed Wireless, Land Mobile U nits V cc = 3V Min. V cc =

SGL-0163 General Description

Stanford Microdevices’ SGL-0163 is a high performance cascadeable 50-ohm low noise amplifier designed for operation at voltages as low as 2.5V. The SGL-0163 can be operated at 3V for low power or 4V for medium power applications. This RFIC uses the latest Silicon Germanium Heterostructure Bipolar Tr.

SGL-0163 Datasheet (211.60 KB)

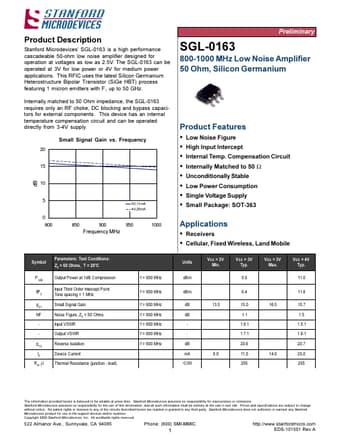

Preview of SGL-0163 PDF

Datasheet Details

Part number:

SGL-0163

Manufacturer:

ETC

File Size:

211.60 KB

Description:

800-1000 mhz low noise amplifier 50 ohm silicon germanium.
