SGL0622Z Low-Noise SiGe HBT MMIC Amplifier

RFMD + TriQuint = Qorvo SGL0622Z 5 MHz to 4000 MHz, Low-Noise SiGe HBT MMIC Amplifier The SGL0622Z is a low noise, high gain MMIC LNA designed for low power single-supply operation from +2.7 V to +3.6 V. It’s Class-2 ESD protection and high input overdrive capability ensures rugged performance, while its integrated active bias circuit maintains robust stable bias over temperature and process beta variation. The SGL0622Z is internally matched from 5 MHz to 4000 MHz and requires only 4 to 5 ext.

SGL0622Z Features

* High Gain, 28.6 dB at 1575 MHz

* Low Noise Figure, 1.4 dB at 1575 MHz

* Low Power Consumption 10.5 mA at +3.3 V

* Battery Operation:+2.7 V to +3.6 V (Active Bias)

* Fully Integrated Matching

* Class 2 ESD Protection (>2000 V HBM) Applications

* High Gain GPS Receivers

SGL0622Z-RFMicroDevices.pdf

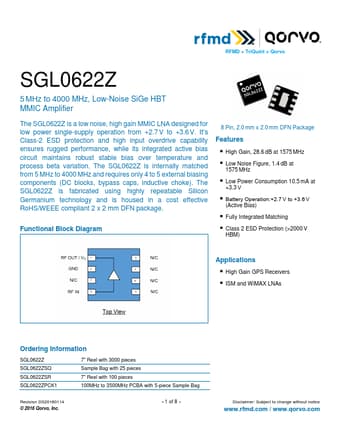

SGL0622Z Datasheet Preview — Preview of SGL0622Z PDF

Datasheet Details

Part number:

SGL0622Z

Manufacturer:

RF Micro Devices

File Size:

504.27 KB

Description:

Low-noise sige hbt mmic amplifier.
