SGL0363Z

LOW NOISE AMPLIFIER

RF Micro Devices

SGL0363Z Features

* Low Power Consumption, 5.7mA at 3.3V

* External Input Noise Match

* High Gain and Low Noise, 20dB and 1.1dB respectively at 900MHz

* Operates from 2.7V to 3.3V

* Power Shutdown Capability using VPC

* 500V ESD, Class 1B

* Small Package: SOT-363

* High input overdrive

SGL0363Z General Description

RFMD’s SGL0363Z is a low power, low noise amplifier. It is designed for 2.7V to 3.3V battery operation. The matching networks are implemented externally which allows for optimum narrow-band performance with 20dB typical gain and 1.1dB noise figure from 200MHz to 900MHz. This RFIC uses the latest Sil.

SGL0363Z Datasheet (513.66 KB)

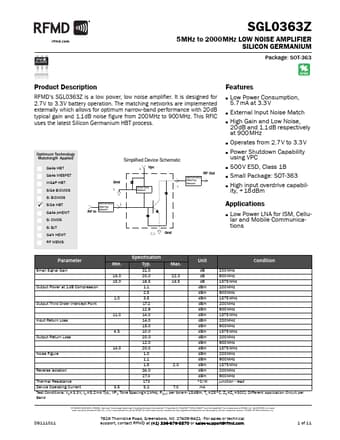

SGL0363Z Datasheet Preview — Preview of SGL0363Z PDF

Datasheet Details

Part number:

SGL0363Z

Manufacturer:

RF Micro Devices

File Size:

513.66 KB

Description:

Low noise amplifier.
SGL0363Z 5MHz to 2000MHz Low Noise Amplifier Silicon Germanium SGL0363Z 5MHz to 2000MHz LOW NOISE AMPLIFIER SILICON GERMANIUM Package: SOT-363 Pro.
