SGL-0363Z - Low Noise Amplifier Silicon Germanium

SGL-0363Z Description

Preliminary SGL-0363Z Product .
Sirenza Microdevices’ SGL-0363Z is a low power, low noise amplifier.

SGL-0363Z Features

* Lead Free, RoHS Compliant & Green Package
* Low Power Consumption, 5.7mA @ 3.3V
* External Input Noise Match
* High Gain and Low Noise,
* 20dB and 1.1dB respectively @ 900MHz Operates from 2.7 to 3.3V Power Shutdown Ca

SGL-0363Z Applications

* Low Power LNA for ISM, Gnd Symbol Parameters Units Cellular and Mobile Communications Frequency Min. Typ. Max. S21 Small Signal Gain dB P1dB Output Power at 1dB Compression dBm IIP3 Input Third Order Intercept Point dBm NF Noise Figure dBm IRL Input Return Loss dBm ORL Ou

📥 Download Datasheet

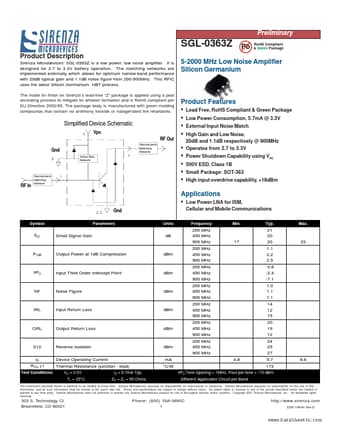

Preview of SGL-0363Z PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SGL-0363Z
Manufacturer
Sirenza Microdevices
File Size
294.16 KB
Datasheet
SGL-0363Z_SirenzaMicrodevices.pdf
Description
Low Noise Amplifier Silicon Germanium
