TMC3KJ Surface Mount Trimmer Potentiometer

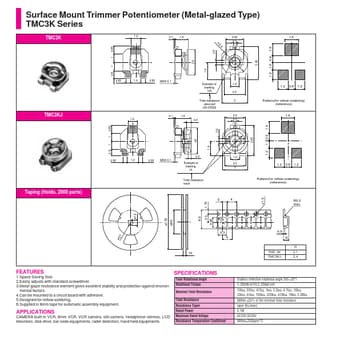

Surface Mount Trimmer Potentiometer (Metal-glazed Type) TMC3K Series TMC3K 1.2 0.1 1.5 2.05 0.5 1.6 ø2.8 0.8 1 1 0.85 2.8 1.8 0.5 3.65 1.2 1.0 0.9 1.5 TMC3KJ 0.55 1.3 1.2 0.55 MAX 0.1 0.1 1.9 Example of marking 103 Total resistance value per JIS-C5200 0.5 1.2 2.5 3 2.5 0.5 1.2 0.8 1.2 Pattern(for reflow soldering) (reference) 1.6 0.8 1 1 0.85 ø3 1.8 0.6 3.65 1.2 1 0.9 1.5 Taping (Holds, 2000 parts) 0.3 0.55 1.3 0.55 MAX 0.1 Example of marking 14 Total resistance value 1.2 2.5 3 .

TMC3KJ Features

* 1.Space Saving Size 2.Easily adjusts with standard screwdriver. 3.Metal-glaze resistance element gives excellent stability and protection against environ- mental factors. 4.Can be mounted to a circuit board with adhesive. 5.Designed for reflow soldering. 6.Supplied in 8mm tape for automatic assembly
