TMC3503 - Triple Video D/A Converter 8 bit/ 80 Msps/ 5V

Fairchild Semiconductor

📥 Download Datasheet

TMC3503 Datasheet Preview — Preview of TMC3503 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: TMC3503
Manufacturer: Fairchild Semiconductor
File Size: 69.63 KB
Datasheet: TMC3503_FairchildSemiconductor.pdf
Description: Triple Video D/A Converter 8 bit/ 80 Msps/ 5V

TMC3503 Product details

Description

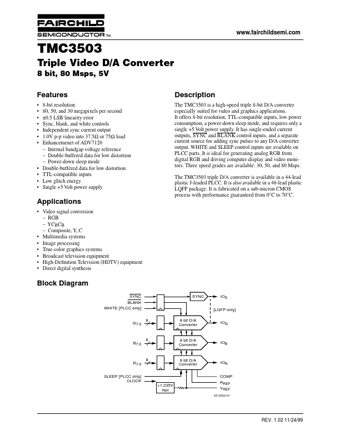

The TMC3503 is a high-speed triple 8-bit D/A converter especially suited for video and graphics applications.

Features

8-bit resolution 80, 50, and 30 megapixels per second ±0.5 LSB linearity error Sync, blank, and white controls Independent sync current output 1.0V p-p video into 37.5Ω or 75Ω load Enhancemenet of ADV7120.
Internal bandgap voltage reference.
Double-buffered data for low distortion.
Power-down sleep mode Double-buffered data for low distortion TTL-compatible inputs Low glitch energy Single +5 Volt pow.
