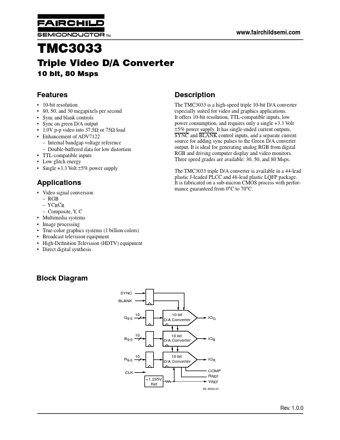

TMC3033 Triple Video D/A Converter 10 bit/ 80 Msps

The TMC3033 is a high-speed triple 10-bit D/A converter especially suited for video and graphics applications. It offers 10-bit resolution, TTL-compatible inputs, low power consumption, and requires only a single +3.3 Volt ±5% power supply. It has single-ended current outputs, SYNC and BLANK control.

TMC3033 Features

* 10-bit resolution 80, 50, and 30 megapixels per second Sync and blank controls Sync on green D/A output 1.0V p-p video into 37.5Ω or 75Ω load Enhancement of ADV7122

* Internal bandgap voltage reference

* Double-buffered data

TMC3033_FairchildSemiconductor.pdf
