TMC3533

Triple Video D/A Converter

EXAR

TMC3533 Features

* 8-bit resolution

* 80, 50, and 30 megapixels per second

* ±0.5 LSB linearity error

* Sync, blank, and white controls

* Independent sync current output

* 1.0V p-p video into 37.5Ω or 75Ω load

* Enhancement of the ADV7120

* Internal ban

TMC3533 General Description

The TMC3533 is a high-speed triple 8-bit D/A converter especially suited for video and graphics applications. It offers 8-bit resolution, TTL-compatible inputs, low power consumption, a power-down sleep mode, and requires only a single +3.3V±5% Volt power supply. It has single-en.

TMC3533 Datasheet (337.23 KB)

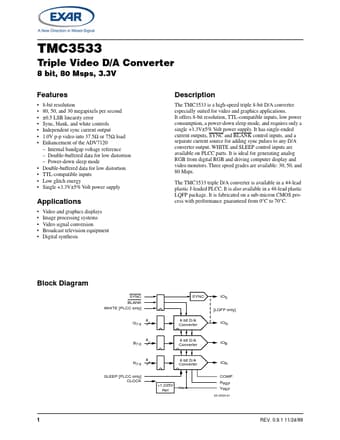

TMC3533 Datasheet Preview — Preview of TMC3533 PDF

Datasheet Details

Part number:

TMC3533

Manufacturer:

EXAR

File Size:

337.23 KB

Description:

Triple video d/a converter.
