TMC2111A, TMC2011A Datasheet - EXAR

TMC2111A Variable-Length Shift Register

The TMC2011A and TMC2111A are high-speed, byte-wide shift registers with programmable delay lengths. The TMC2011A can be programmed to any length between 3 and 18 stages. It offers a special split-word mode which allows for mixed delay lengths. The TMC2011A, constructed in low-power CMOS, is pin and.

TMC2111A Features

* Low power CMOS

* TMC2011A is a pin compatible replacement for the TDC1011 and TMC2011

* TMC2211A is a pin compatible replacement for the TMC2111

* Inputs and outputs are TTL compatible

* DC

* 40MHz clock rate

* Selectable delay lengths (TMC2011

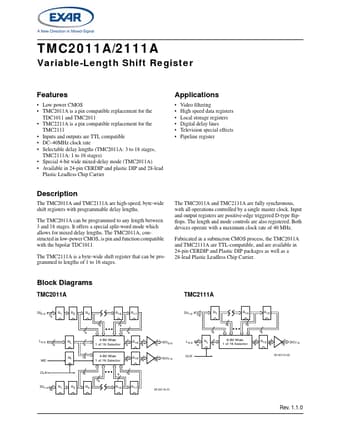

TMC2011A-EXAR.pdf

TMC2111A Datasheet Preview — This datasheet PDF includes multiple part numbers: TMC2111A, TMC2011A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TMC2111A, TMC2011A

Manufacturer:

EXAR

File Size:

361.91 KB

Description:

Variable-length shift register.

Note:

This datasheet PDF includes multiple part numbers: TMC2111A, TMC2011A.
Please refer to the document for exact specifications by model.
