TMC3503

Triple Video D/A Converter

TMC3503 Features

* 8-bit resolution

* 80, 50, and 30 megapixels per second

* ±0.5 LSB linearity error

* Sync, blank, and white controls

* Independent sync current output

* 1.0V p-p video into 37.5Ω or 75Ω load

* Enhancemenet of ADV7120

* Internal bandga

TMC3503 General Description

The TMC3503 is a high-speed triple 8-bit D/A converter especially suited for video and graphics applications. It offers 8-bit resoluti.

TMC3503 Datasheet (338.89 KB)

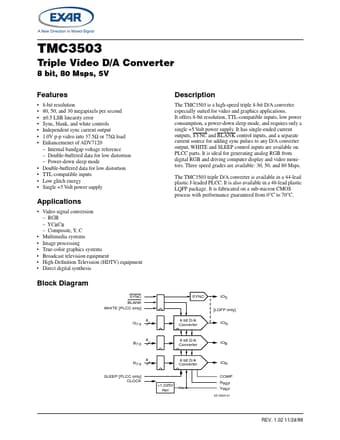

Preview of TMC3503 PDF

Datasheet Details

Part number:

TMC3503

Manufacturer:

EXAR

File Size:

338.89 KB

Description:

Triple video d/a converter.
