TMC3003

Triple Video D/A Converter

EXAR

TMC3003 Features

* 10-bit resolution

* 80, 50, and 30 megapixels per second

* Sync and blank controls

* Sync on green D/A output

* 1.0V p-p video into 37.5Ω or 75Ω load

* Enhancement of ADV7122

* Internal bandgap voltage reference

* Double-buffered data

TMC3003 General Description

The TMC3003 is a high-speed triple 10-bit D/A converter especially suited for video and graphics applications. It offers 10-bit resolution, TTL-compatible inputs, low power consumption, and requires only a single +5 Volt power supply. It has single-ended current outputs, SYNC and B.

TMC3003 Datasheet (366.82 KB)

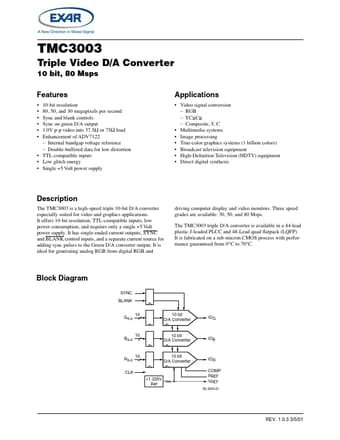

TMC3003 Datasheet Preview — Preview of TMC3003 PDF

Datasheet Details

Part number:

TMC3003

Manufacturer:

EXAR

File Size:

366.82 KB

Description:

Triple video d/a converter.
