UTC4558 DUAL OPERATIONAL AMPLIFIER

UTC4558 Description

UTC4558 DUAL OPERATIONAL AMPLIFIER .
The UTC4558 is a monolithic integrated circuit designed for dual operational amplifier. No frequency com.

UTC4558 Features

* No frequency compensation required.
* No latch-up
* Large commom mode and differential voltage range
* Parameter tracking over temperature range
* Gain and phase match between amplifiers
* Internally frequency compensated
* Low noise input transistors DIP-8 SOP-8 BLOCK DIAG

📥 Download Datasheet

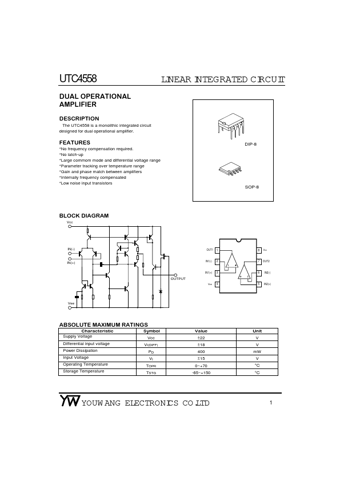

Preview of UTC4558 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UTC4558
Manufacturer
ETC
File Size
101.86 KB
Datasheet
UTC4558_ETC.pdf
Description
DUAL OPERATIONAL AMPLIFIER
