UTC4052 - DIFFERENTIAL 4-CHANNEL ANALOG MULTIPLEXERS/ DEMULTIPLEXERS

Product Overview

Unisonic Technologies

📥 Download Datasheet

UTC4052 DIFFERENTIAL 4-CHANNEL ANALOG MULTIPLEXERS/ DEMULTIPLEXERS by Unisonic Technologies - Datasheet Preview — Datasheet preview – UTC4052

Datasheet Details

Part number	UTC4052
Manufacturer	Unisonic Technologies
File Size	293.04 KB
Description	DIFFERENTIAL 4-CHANNEL ANALOG MULTIPLEXERS/ DEMULTIPLEXERS
Datasheet	UTC4052 Datasheet

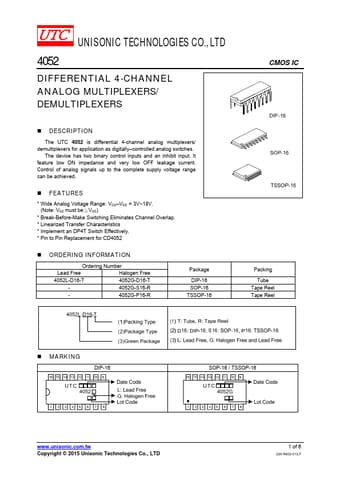

Additional preview pages of the UTC4052 datasheet.

Product details

Description

The UTC 4052 is differential 4-channel analog multiplexers/ demultiplexers for application as digitally controlled analog switches.

Features

S.
Wide Analog Voltage Range: VDD.
VEE = 3V~18V. (Note: VEE must be≦VSS).
Break-Before-Make Switching Eliminates Channel Overlap.
Linearized Transfer Characteristics.
Implement an DP4T Switch Effectively.
Pin to Pin Replacement for CD4052.
