UTC4053 ANALOG MULTIPLEXERS/ DEMULTIPLEXERS

UTC4053 Description

UTC 4053 ANALOG MULTIPLEXERS/ DEMULTIPLEXERS .
The UTC 4053 are Triple SPDT analog multiplexers for application as digitally. controlled analog switches. Ana.

UTC4053 Features

* Analog Voltage Range (VDD
* VEE) = 3.0 ~ 18 V Note: VEE must beā‰¦VSS
* Linearized Transfer Characteristics
* Pin
* to
* Pin Replacement for CD4053 DIP-16 TSSOP-16
* Pb-free plating product number: 4053L PIN CONFIGURATIONS Y1 Y0 Z1 Z Z0 INH V EE V SS 1 2 3 4 5

📥 Download Datasheet

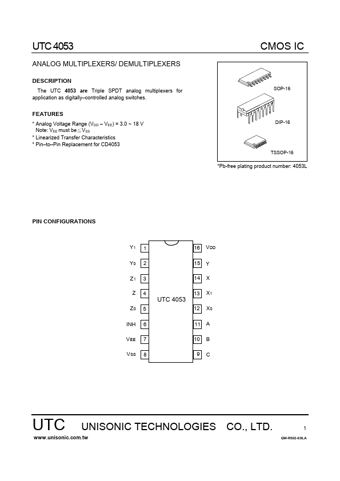

Preview of UTC4053 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UTC4053
Manufacturer
Unisonic Technologies
File Size
145.70 KB
Datasheet
UTC4053_UnisonicTechnologies.pdf
Description
ANALOG MULTIPLEXERS/ DEMULTIPLEXERS
