UTC4013 DAUL D-TYPE FLIP-FLOP

UTC4013 Description

UNISONIC TECHNOLOGIES CO., LTD UTC4013 DUAL D-TYPE FLIP-FLOP * .
The UTC4013 is a dual D-type flip-flop which has two independent circuits and each flip-flop features independent data, set, reset, and clock inputs a.

UTC4013 Features

* independent data, set, reset, and clock inputs and outputs. The input level applied to DATA input are transferred to Q and Q output by rising edge of the clock pulse. When SET input is “H”, and RESET input is “L”, outputs become Q=”H” and Q =”L”. When SET input is “L” and RESET input is “H”, outputs

📥 Download Datasheet

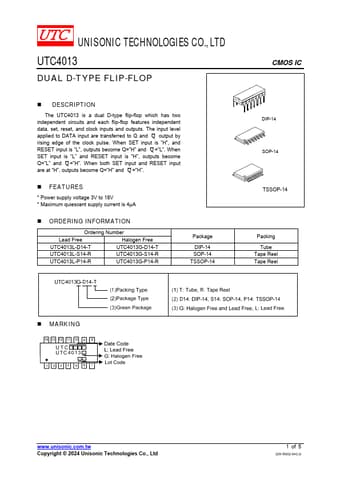

Preview of UTC4013 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UTC4013
Manufacturer
Unisonic Technologies
File Size
259.03 KB
Datasheet
UTC4013-UnisonicTechnologies.pdf
Description
DAUL D-TYPE FLIP-FLOP
