VCA7010VEA7506 Datasheet - ETC

VCA7010VEA7506 Video Equalizing Amplifier with Clipping and Clamping

Video Clipping and Clamping DAsAnalog Video GearRossGear Leitch Compatible Ross Video 85 VCA-7010 GVG Compatible VEA-7506 Precision equalization of up to 305m (1,000 ft.) of coax cable 8 outputs (6 output mode selectable on the VEA-7506) Versions available for many popular cable types White Clipper with hard and soft modes Back porch clamping with 2 speeds Delay adjustable +/- 2 degrees Delay matched for precise interchan.

VCA7010VEA7506 Datasheet (273.46 KB)

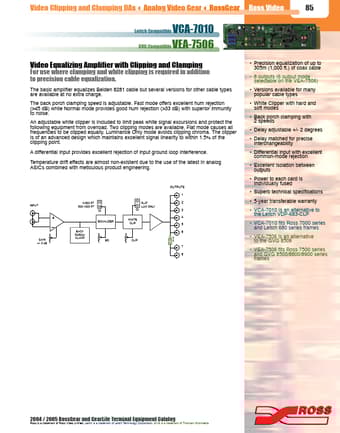

VCA7010VEA7506 Datasheet Preview — Preview of VCA7010VEA7506 PDF

Datasheet Details

Part number:

VCA7010VEA7506

Manufacturer:

ETC

File Size:

273.46 KB

Description:

Video equalizing amplifier with clipping and clamping.
