EL7556AC

Programmable CPU Power Supply Unit

EL7556AC Features

* EL7556C Pin Compatible

* Improved Temperature and Voltage Ranges

* 6A Continuous Load Current

* Precision Internal 1% Reference

* 1.0V to 3.8V Output Voltage

* Internal Power MOSFETs

* >90% Efficiency

* Synchronous Switching

EL7556AC General Description

The EL7556AC is an adjustable synchronous DC:DC switching regulator optimized for a 5V input and 1.0-3.8V output. By combining integrated NMOS power FETS with a fused-lead package the EL7556AC can supply up to 6A continuous output current without the use of external power devices or discrete heat si.

EL7556AC Datasheet (276.43 KB)

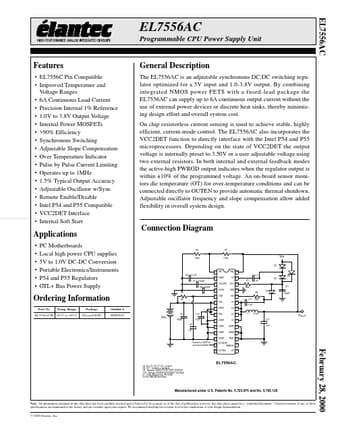

Preview of EL7556AC PDF

Datasheet Details

Part number:

EL7556AC

Manufacturer:

Elantec Semiconductor

File Size:

276.43 KB

Description:

Programmable cpu power supply unit.
