EL7556D Datasheet, Switcher, Intersil Corporation

EL7556D Features

  • Switcher
  • Improved temperature and voltage ranges
  • 6A continuous load current
  • Precision internal 1% reference
  • 1.0V to 3.8V output voltage
  • Internal

PDF File Details

Part number:

EL7556D

Manufacturer:

Intersil Corporation

File Size:

268.77kb

Download:

📄 Datasheet

Description:

Integrated adjustable 6 amp synchronous switcher. VDD Supply Current VDD Standby Current VIN No Load Current Output Initial Accuracy Output Initial Accuracy Output Line Regulation Ou

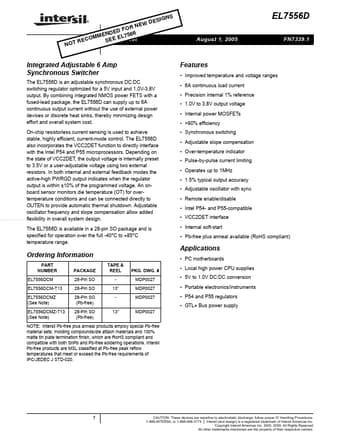

Datasheet Preview: EL7556D 📥 Download PDF (268.77kb)
Page 2 of EL7556D Page 3 of EL7556D

EL7556D Application

  • Applications
  • PC motherboards
  • Local high power CPU supplies
  • 5V to 1.0V DC:DC conversion
  • Portable electronics/
