EL7551 Datasheet, Regulator, Renesas

EL7551 Features

  • Regulator
  • Integrated synchronous MOSFETs and current mode controller
  • 1A continuous output current
  • Up to 95% efficiency
  • 4.5V to 5.5V input voltage

PDF File Details

Part number:

EL7551

Manufacturer:

Renesas ↗

File Size:

549.54kb

Download:

📄 Datasheet

Description:

Monolithic 1amp dc:dc step-down regulator. CONDITIONS MIN TYP VREF VREFTC VREFLOAD VRAMP IOSC_CHG IOSC_DIS IVDD+VDRV IVDD_OFF VDD_OFF VDD_ON TOT THYS ILEAK ILMAX RDSON RDSON

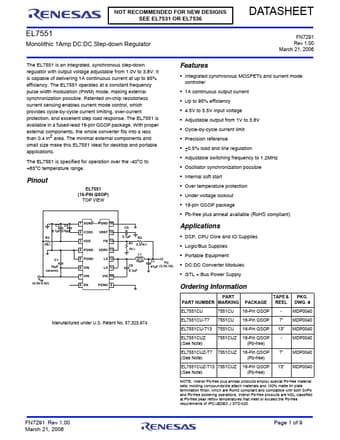

Datasheet Preview: EL7551 📥 Download PDF (549.54kb)
Page 2 of EL7551 Page 3 of EL7551

EL7551 Application

  • Applications The EL7551 is specified for operation over the -40°C to +85°C temperature range. Pinout EL7551 (16-PIN QSOP) TOP VIEW C3 C4 0.1µF 2
