EL7556BC

Integrated Adjustable 6 Amp Synchronous Switcher

EL7556BC Features

* EL7556C/EL7556AC Pincompatible

* Improved temperature and voltage ranges

* 6A continuous load current

* Precision internal 1% reference

* 1.0V to 3.8V output voltage

* Internal power MOSFETs

* >90% efficiency

* Synchronous switching

EL7556BC General Description

The EL7556BC is an adjustable synchronous DC:DC switching regulator optimized for a 5V input and 1.0V-3.8V output. By combining integrated NMOS power FETS with a fused-lead package, the EL7556BC can supply up to 6A continuous output current without the use of external power devices or discrete heat .

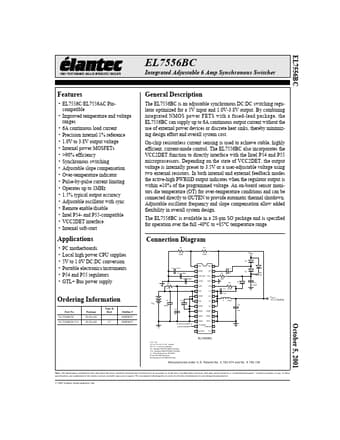

EL7556BC Datasheet (322.48 KB)
