EL7558BC - Integrated Adjustable 8 Amp Synchronous Switcher

EL7558BC Description

EL7558BC EL7558BC Integrated Adjustable 8 Amp Synchronous Switcher .
The EL7558BC is an adjustable synchronous DC:DC switching regulator optimized for a 5V input and 1.

EL7558BC Features

* EL7558C/EL7558AC pincompatible
* Improved temperature and voltage ranges
* 8A continuous load current
* Precision internal 1% reference
* 1.0V to 3.8V output voltage
* Internal power MOSFETs
* >90% efficiency
* Synchronous switching

EL7558BC Applications

* PC motherboards Local high power CPU supplies 5V to 1.0V DC:DC conversion Portable electronics/instruments P54 and P55 regulators GTL+ Bus power supply Connection Diagram R4 R3 100Ω 150Ω VIN D3 1 FB1 CREF CSLOPE COSC VDD VIN VSSP VIN VS

📥 Download Datasheet

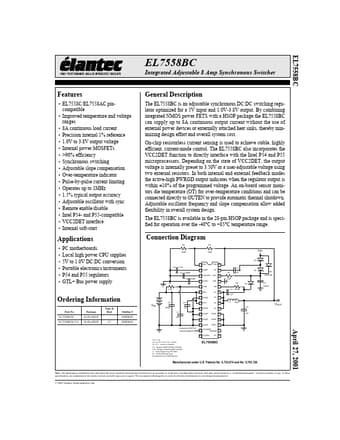

Preview of EL7558BC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EL7558BC
Manufacturer
Elantec Semiconductor
File Size
351.22 KB
Datasheet
EL7558BC_ElantecSemiconductor.pdf
Description
Integrated Adjustable 8 Amp Synchronous Switcher
