AD82587D - 2 x 20W Stereo / 1 x 40W Mono Digital Audio Amplifier

Datasheet Summary

Description

z Loudspeaker output power for Stereo@ 24V AD82587D is a digital audio amplifier capable of 10W x 2ch into 8Ω @ 0.16% THD+N driving a pair of 8Ω,20W or a single 4Ω,40W speaker, 15W x 2ch into 8Ω @ 0.18% THD+N both which operate with play music at a 24V supply 20W x 2ch into 8Ω @ 0.24% THD+N without

Features

Preliminary AD82587D 2X20W Stereo / 1X40W Mono Digital Audio Amplifier z Anti-pop design z 16/18/20/24-bit input with I2S, Left-alignment z Short circuit and over-temperature protection and Right-alignment data format z I2C control interface with selectable device address z PSNR & DR(A-weighting) z Internal PLL Loudspeaker: 97dB (PSNR), 105dB (DR) @ 24V z LV Under-voltage shutdown and HV Under-voltage z Multiple sampling frequencies (Fs) detection 32kHz / 44.1kHz / 48kHz and z Power saving mo.

Datasheet Details

Part number	AD82587D
Manufacturer	Elite Semiconductor
File Size	760.31 KB
Description	2 x 20W Stereo / 1 x 40W Mono Digital Audio Amplifier
Datasheet	AD82587D Datasheet
Additional preview pages of the AD82587D datasheet.

📁 Similar Datasheet

AD82581 - 2x15W Stereo / 1x30W Mono Digital Audio Amplifier (ESMT)

AD82583 - 2 x 20W Stereo / 1 x 40W Mono Class-D Audio Amplifier (ESMT)

AD82584D - 2 x 25W Stereo / 1 x 50W Mono Digital Audio Amplifier (ESMT)

AD82584F - Mono Digital Audio Amplifier (ESMT)

AD82589 - 2 x 20W Stereo / 1 x 40W Mono Digital Audio Amplifier (ESMT)

AD8258A - Stereo/Mono Digital Audio Amplifier (Elite Semiconductor Memory Technology)

AD825 - Low Cost/ General Purpose High Speed JFET Amplifier (Analog Devices)

AD8250 - programmable instrumentation amplifier (Analog Devices)

AD8251 - Programmable Gain Instrumentation Amplifier (Analog Devices)

AD8253 - Programmable Gain Instrumentation Amplifier (Analog Devices)

Full PDF Text Transcription

Click to expand full text

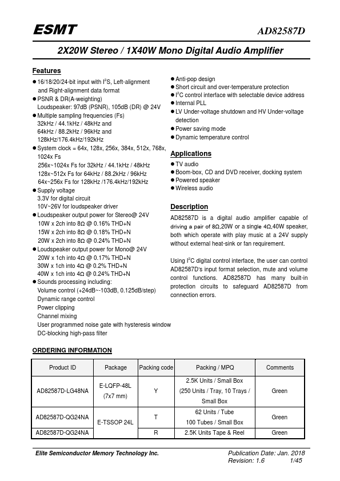

ESMT/EMP Features Preliminary AD82587D 2X20W Stereo / 1X40W Mono Digital Audio Amplifier z Anti-pop design z 16/18/20/24-bit input with I2S, Left-alignment z Short circuit and over-temperature protection and Right-alignment data format z I2C control interface with selectable device address z PSNR & DR(A-weighting) z Internal PLL Loudspeaker: 97dB (PSNR), 105dB (DR) @ 24V z LV Under-voltage shutdown and HV Under-voltage z Multiple sampling frequencies (Fs) detection 32kHz / 44.1kHz / 48kHz and z Power saving mode 64kHz / 88.2kHz / 96kHz and z Dynamic temperature control 128kHz/176.4kHz/192kHz z System clock = 64x, 128x, 256x, 384x, 512x, 768x, Applications 1024x Fs z TV audio 256x~1024x Fs for 32kHz / 44.
