EDD2508AKTA-5

256M bits DDR SDRAM (32M words x 8 bits DDR400)

EDD2508AKTA-5 Features

* Power supply: VDDQ = 2.6V ± 0.1V : VDD = 2.6V ± 0.1V

* Data rate: 400Mbps (max.)

* Double Data Rate architecture; two data transfers per clock cycle

* Bi-directional, data strobe (DQS) is transmitted /received with data, to be used in capturing data at the receiver

EDD2508AKTA-5 General Description

The EDD2508AKTA-5 is a 256M bits DDR SDRAM organized as 8,388,608 words × 8 bits × 4 banks. Read and write operations are performed at the cross points of the CK and the /CK. This high-speed data transfer is realized by the 2 bits prefetch-pipelined architecture. Data strobe (DQS) both for read and .

EDD2508AKTA-5 Datasheet (591.94 KB)

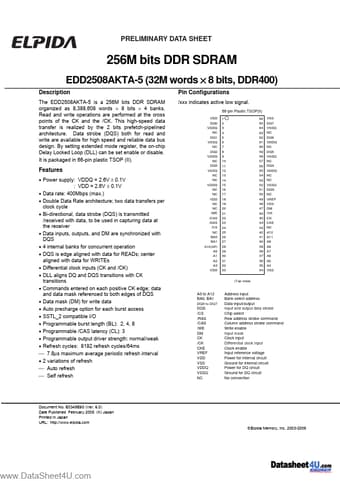

Preview of EDD2508AKTA-5 PDF

Datasheet Details

Part number:

EDD2508AKTA-5

Manufacturer:

Elpida Memory

File Size:

591.94 KB

Description:

256m bits ddr sdram (32m words x 8 bits ddr400).
