IP002-1-012X, IP002-1-010X Datasheet - Ensign

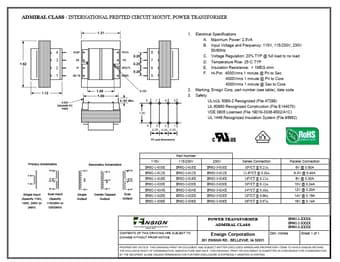

IP002-1-012X POWER TRANSFORMER

ADMIRAL CLASS - INTERNATIONAL PRINTED CIRCUIT MOUNT, POWER TRANSFORMER 1. Electrical Specifications A. Maximum Power: 2.5VA B. Input Voltage and Frequency: 115V, 115/230V, 230V 50/60Hz C. Voltage Regulation: 20% TYP @ full load to no load D. Temperature Rise: 25 C TYP E. Insulation Resistance: > 1MEG ohm F. Hi-Pot: 4000Vrms 1 minute @ Pri to Sec 4000Vrms 1 minute @ Pri to Core 4000Vrms 1 minute @ Sec to Core 2. Marking: Ensign Corp, part number (see table), date code 3. Safety: UL/cUL 5085-2 Rec.

IP002-1-010X-Ensign.pdf

This datasheet PDF includes multiple part numbers: IP002-1-012X, IP002-1-010X. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IP002-1-012X, IP002-1-010X

Manufacturer:

Ensign

File Size:

376.51 KB

Description:

Power transformer.

Note:

This datasheet PDF includes multiple part numbers: IP002-1-012X, IP002-1-010X.
Please refer to the document for exact specifications by model.
