IP00C720, IP00C720_I - Image Scaling Device Up to W-XGA

I-Chips

📥 Download Datasheet

IP00C720 Datasheet Preview — This datasheet PDF includes multiple part numbers: IP00C720, IP00C720_I. Please refer to the document for exact specifications by model.

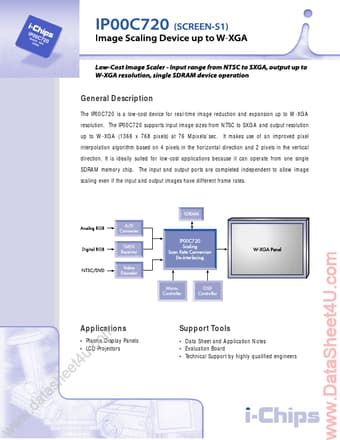

datasheet Preview Page 2

Datasheet Details

Part number	IP00C720, IP00C720_I
Manufacturer	I-Chips
File Size	712.17 KB
Description	Image Scaling Device Up to W-XGA
Datasheet	IP00C720_I-Chips.pdf
Note	This datasheet PDF includes multiple part numbers: IP00C720, IP00C720_I. Please refer to the document for exact specifications by model.

IP00C720 Product details

Description

The IP00C720 is a low-cost device for real-time image reduction and expansion up to W-XGA resolution.

Features

Input Image Formats.
RGB 24-bit @ 108 MHz.
YUV4:2:2 16-bit or YUV4:4:4 24-bit @ 80 MHz.
Image size up to 2400 pixels horizontally with 1438 pixels of active video.
External synchronization (Hsync, Vsync, Clock) Other Features.
16-color OSD overlay (1.6 million colors palette) YUVto RGB conversion (6 programmable coefficients) Color dithering for 24/18 bits displays Edge e.
