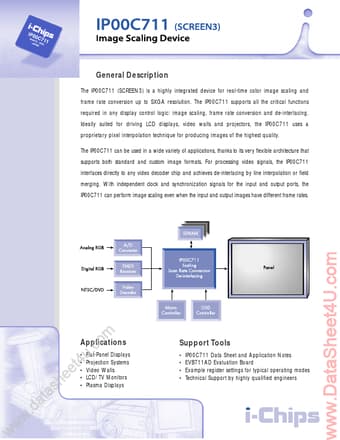

IP00C711 Product details

Description

The IP00C711 (SCREEN3) is a highly integrated device for real-time color image scaling and frame rate conversion up to SXGA resolution.

Features

Input Image Formats.
RGB 48-bit (2 pixels/clock) at 160 Mpixels/sec. RGB 24-bit (1 pixel/clock) at 90 Mpixels/sec. YUV4:2:2 (16 bits) at 80MHz Image size up to 2400 pixels horizontally with 1920 pixels of active video.
Interlaced or non-interlaced.
External synchronization (HSync, VSync, CLK) Frame Rate Conversion.
Asynchronous operation of the input and output ports.
Frame synchronization function to avoid frame tearing.
