IP00C702, IP00C702_I - Image Scaling Device

I-Chips

📥 Download Datasheet

IP00C702 Datasheet Preview — This datasheet PDF includes multiple part numbers: IP00C702, IP00C702_I. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

Datasheet Details

Part number	IP00C702, IP00C702_I
Manufacturer	I-Chips
File Size	650.91 KB
Description	Image Scaling Device
Datasheet	IP00C702_I-Chips.pdf
Note	This datasheet PDF includes multiple part numbers: IP00C702, IP00C702_I. Please refer to the document for exact specifications by model.

IP00C702 Product details

Description

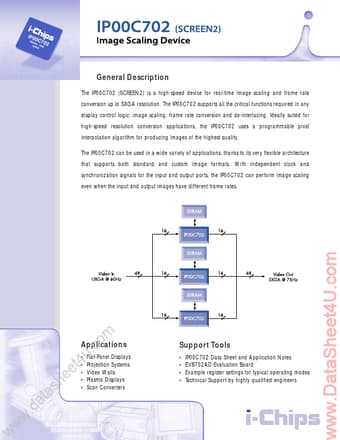

The IP00C702 (SCREEN2) is a high-speed device for real-time image scaling and frame rate conversion up to SXGA resolution.

Features

Input Image Formats.
16-bit (2 pixels/clock) at 170 Mpixels/sec. 8-bit (1 pixel/clock) at 85 Mpixels/sec. Interlaced or non-interlaced External or internal synchronization (HSync, VSync) Frame Rate Conversion.
Asynchronous operation of the input and output ports.
Frame synchronization function to avoid frame tearing Other Features.
4-color OSD support Output Image Formats.
16-bit (2 pixels/clock) at 140 Mpixels/sec.
