IP002-3-024X POWER TRANSFORMER

ADMIRAL CLASS - INTERNATIONAL PRINTED CIRCUIT MOUNT, POWER TRANSFORMER 1. Electrical Specifications A. Maximum Power: 2.5VA B. Input Voltage and Frequency: 115V, 115/230V, 230V 50/60Hz C. Voltage Regulation: 20% TYP @ full load to no load D. Temperature Rise: 25 C TYP E. Insulation Resistance: > 1MEG ohm F. Hi-Pot: 4000Vrms 1 minute @ Pri to Sec 4000Vrms 1 minute @ Pri to Core 4000Vrms 1 minute @ Sec to Core 2. Marking: Ensign Corp, part number (see table), date code 3. Safety: UL/cUL 5085-2 Rec.

IP002-3-024X Datasheet (376.51 KB)

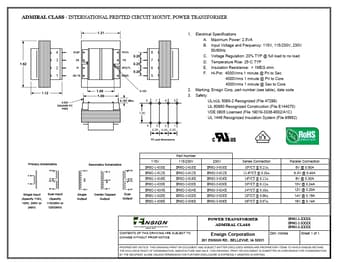

IP002-3-024X Datasheet Preview — Preview of IP002-3-024X PDF

Datasheet Details

Part number:

IP002-3-024X

Manufacturer:

Ensign

File Size:

376.51 KB

Description:

Power transformer.
