PBM3960-1 Datasheet, Converter, Ericsson

✔ PBM3960-1 Features

Analog control voltages from 3 V down to 0.0 V.
High-speed microprocessor interface.
Automatic fast/slow current decay control.
Full-scale error ±1 LSB.
Interfa

✔ PBM3960-1 Application

The circuit has a set of input registers connected to an 8-bit data port for easy interfacing directly to a

PDF File Details

Ericsson manufacturer logo

Part number:

PBM3960-1

Manufacturer:

Ericsson

File Size:

111.19kb

Download:

📄 Datasheet

Description:

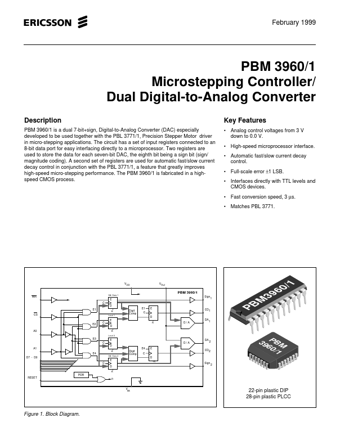

Microstepping controller/dual digital-to-analog converter. PBM 3960/1 is a dual 7-bit+sign, Digital-to-Analog Converter (DAC) especially developed to be used together with the PBL 3771/1, Prec

📥 Download PDF (111.19kb)

📁 Related Datasheet

PBM3960 - Microstepping Controller/Dual Digital-to-Analog Converter (Ericsson)
February 1999 PBM 3960/1 Microstepping Controller/ Dual Digital-to-Analog Converter Description PBM 3960/1 is a dual 7-bit+sign, Digital-to-Analog Co.
