PBMB300A6 IGBT MODULE

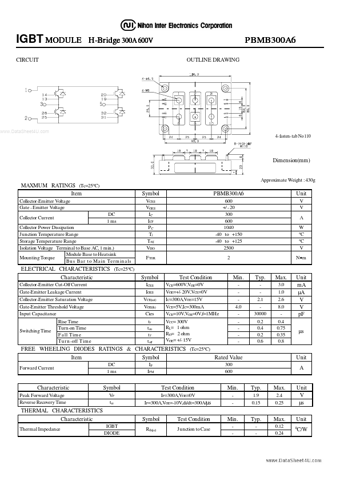

IGBT MODULE CIRCUIT HH-Bridge 300A 600V OUTLINE DRAWING PBMB300A6 www.DataSheet4U.com 4- fasten- tab No 110 Dimension(mm) Approximate Weight : 430g MAXMUM RATINGS (Tc=25°C) Item Collector-Emitter Voltage Gate - Emitter Voltage Collector Current DC 1 ms Symbol VCES VGES IC ICP PC Tj Tstg VISO FTOR PBMB300A6 600 +/ - 20 300 600 1040 -40 to +150 -40 to +125 2500 2 Unit V V A W °C °C V N m Collector Power Dissipation Junction Temperature Range Storage Temperature Range Isolation Vo.
