PBMB100A6, IGBT MODULE

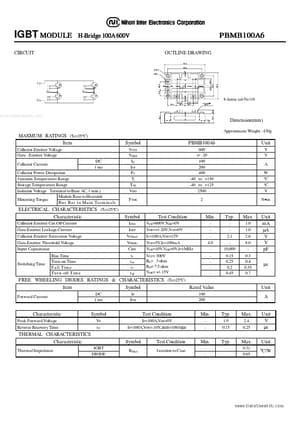

IGBT MODULE CIRCUIT H-Bridge 100A 600V OUTLINE DRAWING PBMB100A6 8- fasten- tab No 110 www.DataSheet4U.com Dimension(mm) Approximate Weight : 430g MAXMUM RATINGS (Tc=25°C) Item Collector-Emitter Voltage Gate - Emitter Voltage Collector Current DC 1 ms Symbol VCES VGES IC ICP PC Tj Tstg VISO FTOR PBMB100A6 600 +/ - 20 100 200 400 -40 to +150 -40 to +125 2500 2 Unit V V A W °C °C V N m Collector Power Dissipation Junction Temperature Range Storage Temperature Range Isolation Volt
