PBMB100B12 Datasheet - Nihon Inter Electronics

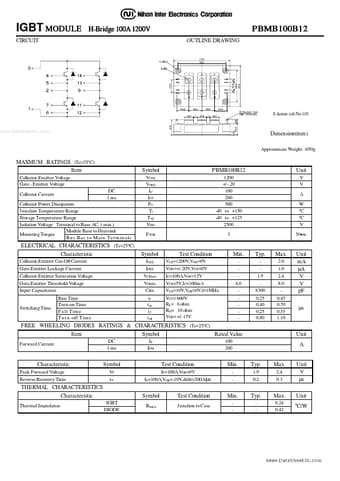

PBMB100B12 IGBT MODULE

IGBT MODULE CIRCUIT H-Bridge 100A 1200V OUTLINE DRAWING PBMB100B12 ３４５２７６ 14 13 ９ 11 12 １ 8- fasten- tab No 110 www.DataSheet4U.com Dimension(mm) Approximate Weight : 650g MAXMUM RATINGS (Tc=25°C) Item Collector-Emitter Voltage Gate - Emitter Voltage Collector Current DC 1 ms Symbol VCES VGES IC ICP PC Tj Tstg VISO FTOR PBMB100B12 1200 +/ - 20 100 200 500 -40 to +150 -40 to +125 2500 3 Unit V V A W °C °C V N m Collector Power Dissipation Junction Temperature Range Storag.

PBMB100B12_NihonInterElectronics.pdf
