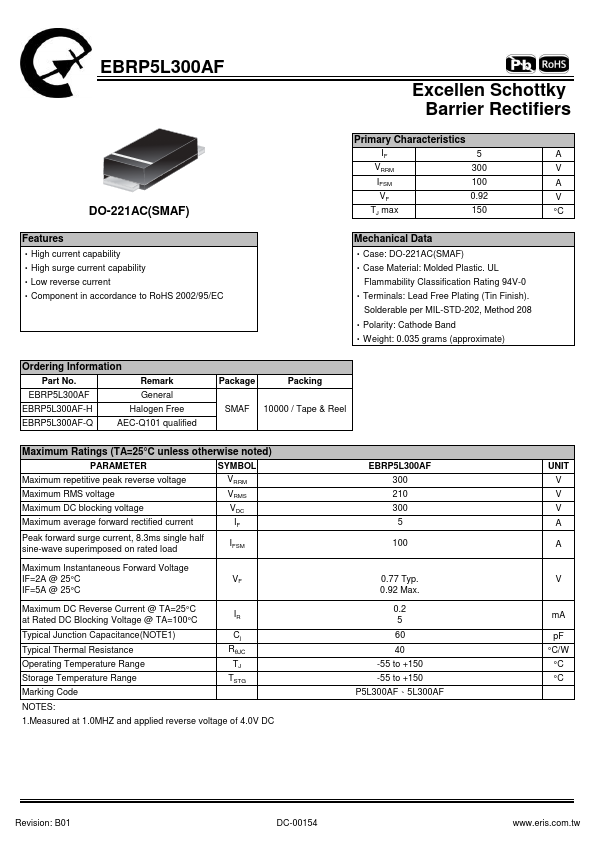

EBRP5L300AF - Excellen Schottky Barrier Rectifiers

Datasheet Details

Part number	EBRP5L300AF
Manufacturer	Eris
File Size	355.05 KB
Description	Excellen Schottky Barrier Rectifiers
Datasheet	EBRP5L300AF-Eris.pdf

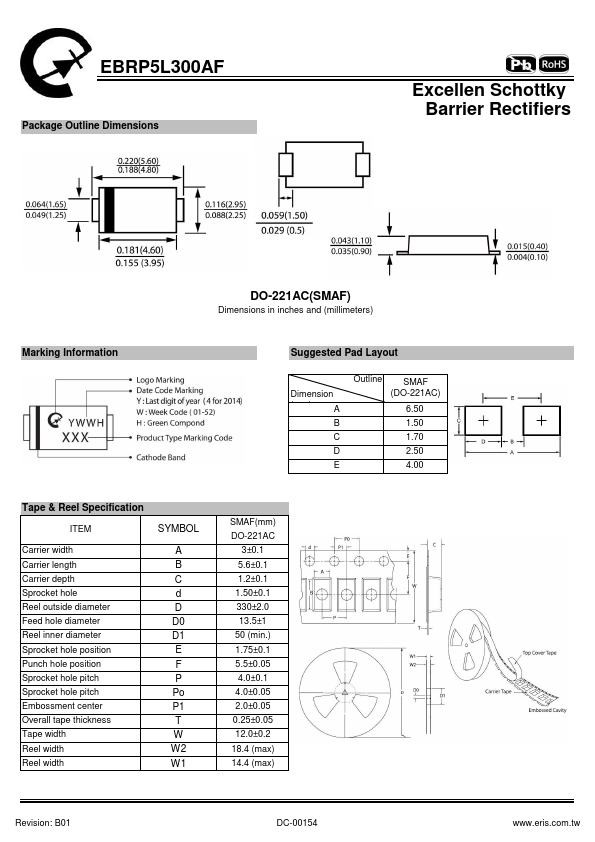

‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Case: DO-221AC(SMAF) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead Free Plating (Tin Finish). Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.035 grams (approximate) Ordering Information Part No. Remark EBRP5L300AF General EBRP5L300AF-H Halogen Free EBRP5L300AF-Q AEC-Q101 qualif.
