EBRP5L300B Excellent Schottky Barrier Rectifiers

Eris

Description

EBRP5L300B Excellent Schottky Barrier Rectifiers DO-214AA(SMB) Primary Characteristics IF 5 A VRRM 300 V IFSM 100 A VF 0.97 V TJ max .

📥 Download Datasheet

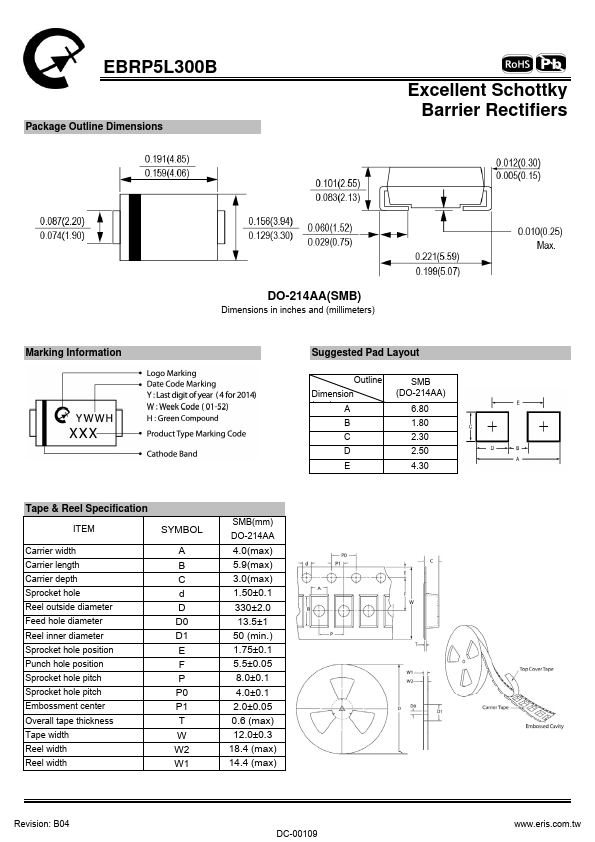

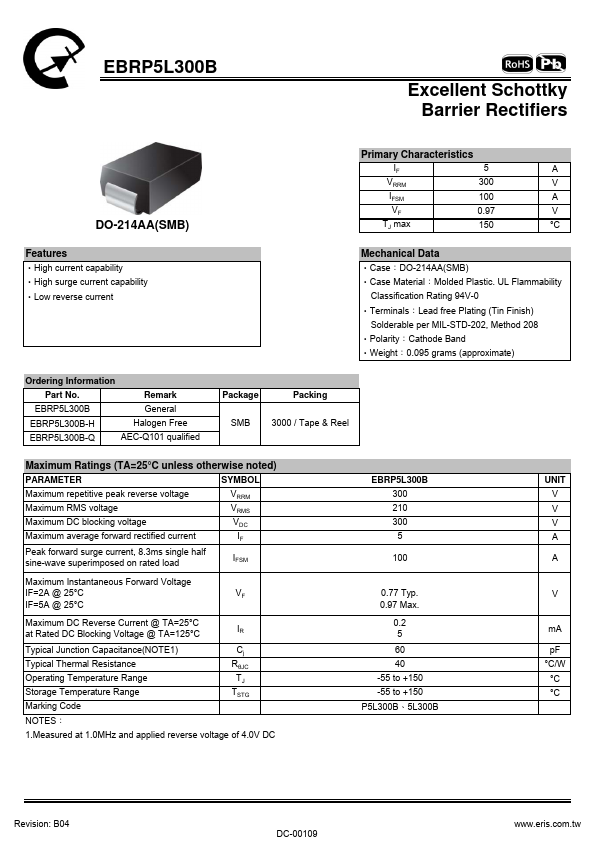

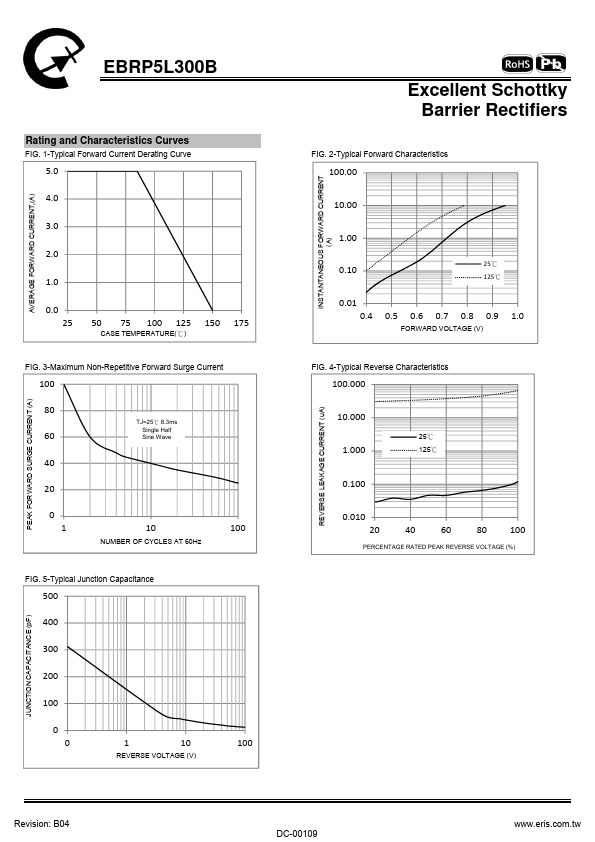

EBRP5L300B Datasheet Preview — Preview of EBRP5L300B PDF

Datasheet Specifications

Part number: EBRP5L300B
Manufacturer: Eris
File Size: 294.29 KB
Datasheet: EBRP5L300B-Eris.pdf
Description: Excellent Schottky Barrier Rectifiers

Features

* ‧High current capability ‧High surge current capability ‧Low reverse current Mechanical Data ‧Case：DO-214AA(SMB) ‧Case Material：Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals：Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity：Cathode Band ‧Weight

Applications

* shall assume all risks of such use and will agree to hold Eris and all the companies whose products are represented on Eris website, harmless against all damages.
* No license, express or implied, by estoppels or otherwise, to any intellectual property is granted by this document or by any condu
