EL816C, EL816, 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER EL816 Series Schematic .
The EL816 series of devices each consist of an infrared emitting diodes, optically coupled to a phototransistor detector.

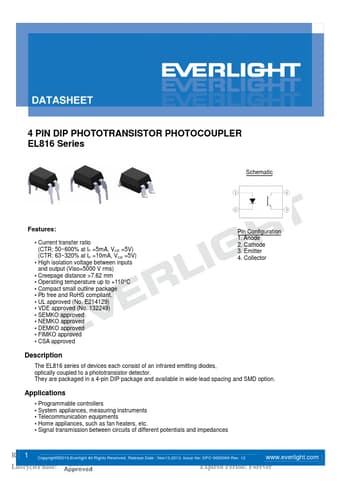

datasheet Preview Page 1 from Datasheet4u.com

EL816-EverlightElectronics.pdf

EL816C Datasheet Preview — This datasheet PDF includes multiple part numbers: EL816C, EL816. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EL816C, EL816

Manufacturer:

Everlight Electronics

File Size:

850.44 KB

Description:

4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

Note:

This datasheet PDF includes multiple part numbers: EL816C, EL816.
Please refer to the document for exact specifications by model.

Features

* Current transfer ratio (CTR: 50~600% at IF =5mA, VCE =5V) (CTR: 63~320% at IF =10mA, VCE =5V)
* High isolation voltage between inputs and output (Viso=5000 V rms)
* Creepage distance >7.62 mm
* Operating temperature up to +110°C
* Compact small outline pack

Applications

* Programmable controllers
* System appliances, measuring instruments
* Telecommunication equipments
* Home appliances, such as fan heaters, etc.
* Signal transmission between circuits of different potentials and impedances 1 Copyright© Revision : 12 2010,Eve
