EL816A-G, 4PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER EL816(D)-G Series Schematic .
The EL816(D)-G series of devices each consist of an infrared emitting diodes, optically coupled to a phototransistor detector encapsulated with green.

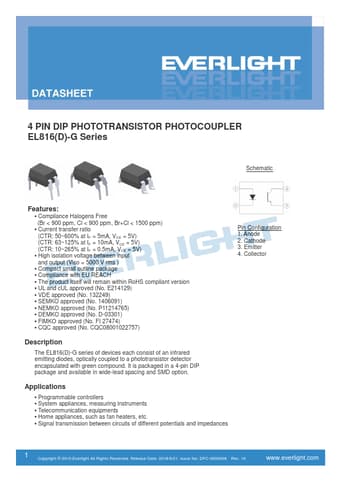

datasheet Preview Page 1 from Datasheet4u.com

EL816A-G-Everlight.pdf

EL816A-G Datasheet Preview — Preview of EL816A-G PDF

Datasheet Details

Part number:

EL816A-G

Manufacturer:

Everlight

File Size:

948.96 KB

Description:

4PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

Features

* Compliance Halogens Free (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm)
* Current transfer ratio (CTR: 50~600% at IF = 5mA, VCE = 5V) (CTR: 63~125% at IF = 10mA, VCE = 5V) (CTR: 10~265% at IF = 0.5mA, VCE = 5V)
* High isolation voltage between input and output (Viso = 5000
