EL816B-G - 4PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

Product Overview

Everlight

Datasheet Details

Part number	EL816B-G
Manufacturer	Everlight
File Size	948.96 KB
Description	4PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER
Datasheet	EL816B-G Datasheet
Note	This datasheet PDF includes multiple part numbers: EL816B-G, EL816A-G. Please refer to the document for exact specifications by model.
Additional preview pages of the EL816B-G datasheet.

Product details

Description

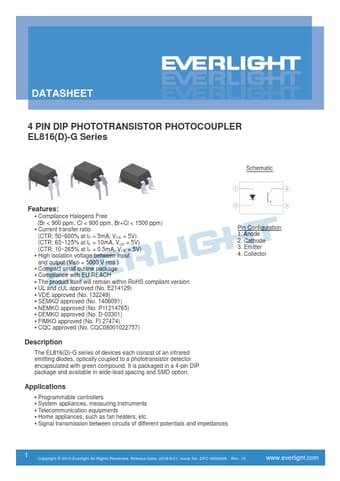

The EL816(D)-G series of devices each consist of an infrared emitting diodes, optically coupled to a phototransistor detector encapsulated with green compound.

Features

Compliance Halogens Free (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm).
Current transfer ratio (CTR: 50~600% at IF = 5mA, VCE = 5V) (CTR: 63~125% at IF = 10mA, VCE = 5V) (CTR: 10~265% at IF = 0.5mA, VCE = 5V).
High isolation voltage between input and output (Viso = 5000 V rms ).
Compact small outline package.
Compliance with EU REACH.
The product itself will remain within RoHS compliant version.
UL and cUL approved (No. E214129).
