XR16V2550 HIGH PERFORMANCE DUART

XR16V2550 Description

www.DataSheet4U.com JUNE 2006 PRELIMINARY XR16V2550 REV.P1.0.0 HIGH PERFORMANCE DUART WITH 16-BYTE FIFO GENERAL .
The XR16V25501 (V2550) is a high performance dual universal asynchronous receiver and transmitter (UART) with 16 bytes TX and RX FIFOs.

XR16V2550 Features

* of selectable FIFO trigger level, automatic hardware (RTS/CTS) and software flow control, and a complete modem interface. Onboard registers provide the user with operational status and data error flags. An internal loopback capability allows system diagnostics. Independent programmable baud rate gen

XR16V2550 Applications

* Portable Appliances
* Telecommunication Network Routers
* Ethernet Network Routers
* Cellular Data Devices

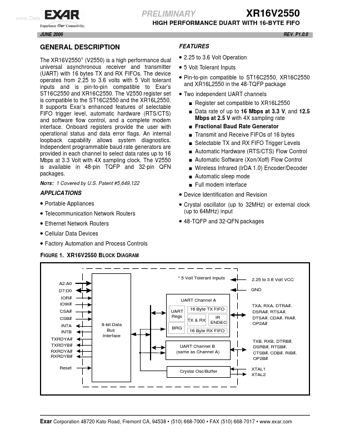

* Factory Automation and Process Controls FIGURE 1. XR16V2550 BLOCK DIAGRAM
* Device Identification and Revision
* Crystal oscillator
