XR16V2652

HIGH PERFORMANCE DUART

XR16V2652 Features

* of selectable FIFO trigger level, automatic hardware (RTS/CTS) and software flow control and a complete modem interface. Onboard registers provide the user with operational status and data error flags. An internal loopback capability allows system diagnostics. Independent programmable baud rate gene

XR16V2652 General Description

The XR16V26521 (V2652) is a high performance dual universal asynchronous receiver and transmitter (UART) with 32 byte TX and RX FIFOs. The device operates from 2.25 to 3.6 volts with 5 Volt tolerant inputs and is pin-to-pin compatible to Exar’s ST16C2552, XR16L2552, XR16V2552 and XR16L2752. The V265.

XR16V2652 Datasheet (563.77 KB)

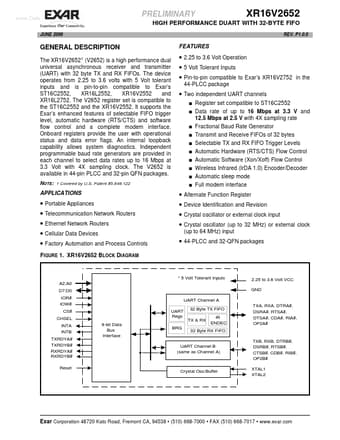

Preview of XR16V2652 PDF

Datasheet Details

Part number:

XR16V2652

Manufacturer:

Exar Corporation

File Size:

563.77 KB

Description:

High performance duart.
