XR16V2750

HIGH PERFORMANCE DUART

XR16V2750 Features

* It supports the Exar’s enhanced features of programmable FIFO trigger level and FIFO level counters, automatic hardware (RTS/CTS) and software flow control, automatic RS-485 half duplex direction control output and a complete modem interface. Onboard registers provide the user with operational stat

XR16V2750 General Description

The XR16V27501 (V2750) is a high performance dual universal asynchronous receiver and transmitter (UART) with 64 byte TX and RX FIFOs. The device operates from 2.25 to 3.6 volts with 5 Volt tolerant inputs and is pin-to-pin compatible to Exar’s ST16C2550 and XR16L2750. The V2750 register set is iden.

XR16V2750 Datasheet (587.25 KB)

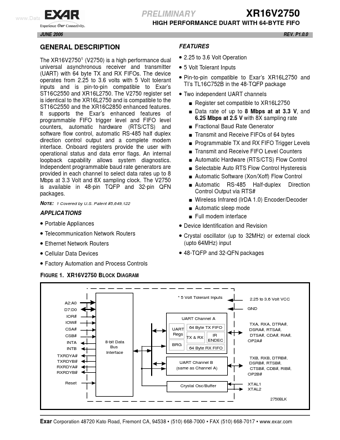

Preview of XR16V2750 PDF

Datasheet Details

Part number:

XR16V2750

Manufacturer:

Exar Corporation

File Size:

587.25 KB

Description:

High performance duart.
