XR16V2751 HIGH PERFORMANCE DUART

XR16V2751 Description

www.DataSheet4U.com xr JUNE 2006 PRELIMINARY .
The XR16V27511 (V2751) is a high performance dual universal asynchronous receiver and transmitter (UART) with 64 byte TX and RX FIFOs.

XR16V2751 Applications

* Register set identical to 16L2751 Data rate of up to 8 Mbps at at 3.3 V, and 4 Mbps at 2.5 V with 8X sampling rate Fractional Baud Rate Generator Transmit and Receive FIFOs of 64 bytes Programmable TX and RX FIFO Trigger Levels Transmit and Receive FIFO Level Counters Automatic Hardware (RTS/CTS) F

📥 Download Datasheet

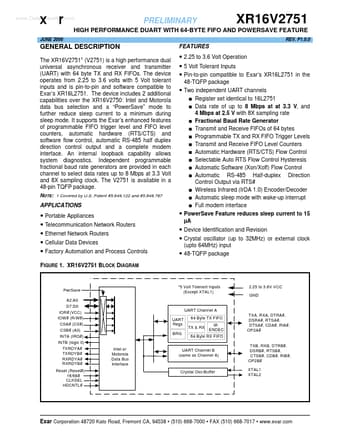

Preview of XR16V2751 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XR16V2751
Manufacturer
Exar Corporation
File Size
588.89 KB
Datasheet
XR16V2751_ExarCorporation.pdf
Description
HIGH PERFORMANCE DUART
