XR16V554D, XR16V554 2.25V TO 3.6V QUAD UART

XR16V554D Description

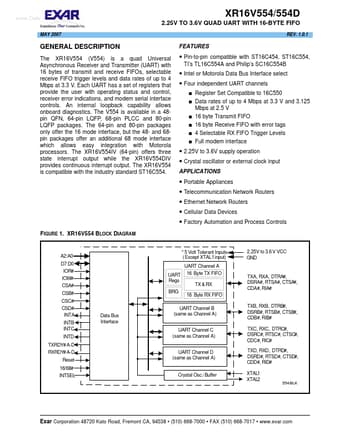

www.DataSheet4U.com MAY 2007 XR16V554/554D 2.25V TO 3.6V QUAD UART WITH 16-BYTE FIFO REV.1.0.1 GENERAL .
The XR16V554 (V554) is a quad Universal Asynchronous Receiver and Transmitter (UART) with 16 bytes of transmit and receive FIFOs, selectable receive F.

XR16V554D Features

* Pin-to-pin compatible with ST16C454, ST16C554, TI’s TL16C554A and Philip’s SC16C554B
* Intel or Motorola Data Bus Interface select
* Four independent UART channels
* Register Set Compatible to 16C550 Data rates of up to 4 Mbps at 3.3 V and 3.125 Mbps at 2.5 V 1

XR16V554D Applications

* Portable Appliances
* Telecommunication Network Routers
* Ethernet Network Routers
* Cellular Data Devices
* Factory Automation and Process Controls FIGURE 1. XR16V554 BLOCK DIAGRAM
* 5 Volt Tolerant Inputs ( Except XTAL1 input) UART Channel A UART 16 B

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: XR16V554D, XR16V554. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XR16V554D, XR16V554
Manufacturer
Exar Corporation
File Size
505.92 KB
Datasheet
XR16V554_ExarCorporation.pdf
Description
2.25V TO 3.6V QUAD UART
Note
This datasheet PDF includes multiple part numbers: XR16V554D, XR16V554.
Please refer to the document for exact specifications by model.
