XR16V564D, XR16V564 Datasheet - Exar Corporation

XR16V564D 2.25V TO 3.6V QUAD UART

The XR16V5641 (V564) is an enhanced quad Universal Asynchronous Receiver and Transmitter (UART) with 32 bytes of transmit and receive FIFOs, programmable transmit and receive FIFO trigger levels, automatic hardware and software flow control, and data rates of up to 16 Mbps at 4X sampling rate. Each .

XR16V564D Features

* Pin-to-pin compatible with ST16C454, ST16C554, TI’s TL16C754B and Philip’s SC16C754B

* Intel or Motorola Data Bus Interface select

* Four independent UART channels

* Register Set Compatible to 16C550 Data rates of

XR16V564_ExarCorporation.pdf

This datasheet PDF includes multiple part numbers: XR16V564D, XR16V564. Please refer to the document for exact specifications by model.

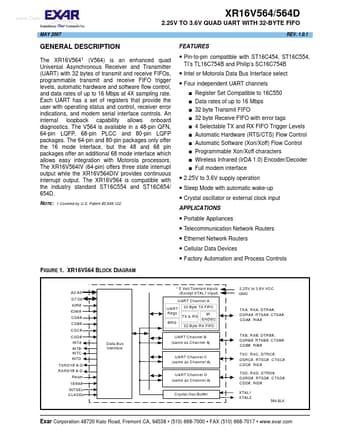

XR16V564D Datasheet Preview Page 2 XR16V564D Datasheet Preview Page 3

Datasheet Details

Part number:

XR16V564D, XR16V564

Manufacturer:

Exar Corporation

File Size:

630.06 KB

Description:

2.25v to 3.6v quad uart.

Note:

This datasheet PDF includes multiple part numbers: XR16V564D, XR16V564.
Please refer to the document for exact specifications by model.
