XR19L210 - SINGLE CHANNEL INTEGRATED UART AND RS-232 TRANSCEIVER

Exar Corporation

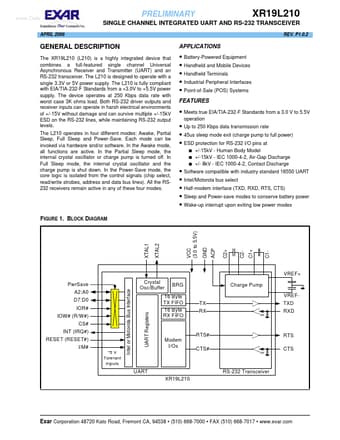

XR19L210 Datasheet Preview — Preview of XR19L210 PDF

Datasheet Details

Part number	XR19L210
Manufacturer	Exar Corporation
File Size	465.42 KB
Description	SINGLE CHANNEL INTEGRATED UART AND RS-232 TRANSCEIVER
Datasheet	XR19L210_ExarCorporation.pdf

XR19L210 Product details

Description

The XR19L210 (L210) is a highly integrated device that combines a full-featured single channel Universal Asynchronous Receiver and Transmitter (UART) and an RS-232 transceiver.

Features

Meets true EIA/TIA-232-F Standards from a 3.0 V to 5.5V operation.
Up to 250 Kbps data transmission rate.
45us sleep mode exit (charge pump to full power).
ESD protection for RS-232 I/O pins at.
+/-15kV - Human Body Model +/-15kV - IEC 1000-4-2, Air-Gap Discharge +/- 8kV - IEC 1000-4-2, Contact Discharge.
Software compatible with industry standard 16550 UART.
Intel/Motorola bus select.
Half-modem interface (TXD,.
