XR2206 Datasheet, generator equivalent, Exar Corporation

XR2206 Features

  • Generator D Low-Sine Wave Distortion, 0.5%, Typical D Excellent Temperature Stability, 20ppm/°C, Typ. D Wide Sweep Range, 2000:1, Typical D Low-Supply Sensitivity, 0.01%V, Typ. D Linear Amplitude

PDF File Details

Part number:

XR2206

Manufacturer:

Exar Corporation

File Size:

144.71kb

Download:

📄 Datasheet

Description:

Monolithic function generator. The XR-2206 is a monolithic function generator integrated circuit capable of producing high quality sine, square, triangle, ramp, and

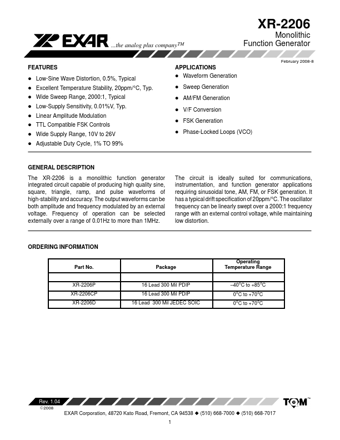

Datasheet Preview: XR2206 📥 Download PDF (144.71kb)
Page 2 of XR2206 Page 3 of XR2206

XR2206 Application

  • Applications D Waveform Generation D Sweep Generation D AM/FM Generation D V/F Conversion D FSK Generation D Phase-Locked Loops (VCO) February 2008
