XR2204P

26V Step-up DC/DC Converter

XR2204P Features

* z 2.3V to 6V input voltage Rangel z Efficiency up to 96% z 26V Boost converter with 2.8A switch current z 1.2Mhz fixed Switching Frequency z Integrated soft-start z Thermal Shutdown z Under voltage Lockout z ESD 8KV Pass( HBM ) z 8-Pin SOP-PP Package APPLICATIONS

* Handheld Devices

XR2204P General Description

The XR2204P is a high frequency, high efficiency DC to DC converter with an integrated 2.8A, 0.1Ω power switch capable of providing an output voltage up to 26V. The fixed 1.2MHz allows the use of small external inductions and capacitors and provides fast transient response. It integrates Soft start,.

XR2204P Datasheet (256.24 KB)

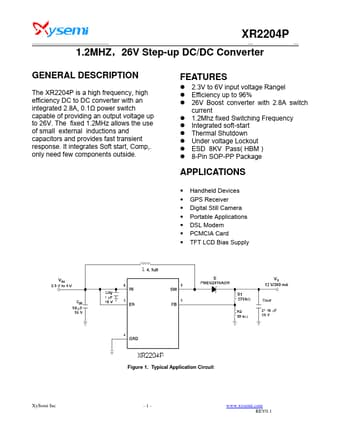

Preview of XR2204P PDF

Datasheet Details

Part number:

XR2204P

Manufacturer:

XySemi

File Size:

256.24 KB

Description:

26v step-up dc/dc converter.
